Introduction

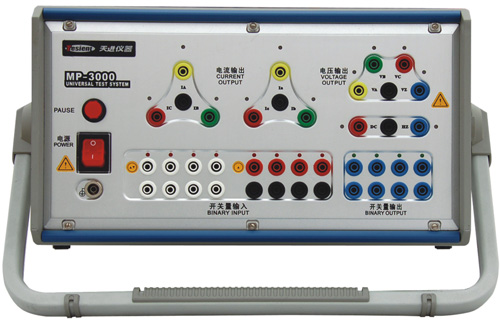

Advanced three phase automatic relay test set. PC control through user friendly MPWIN Relay Test Software. High accuracy and high power over wide range. Suitable for IEC61850 GOOSE simulation, subscription and sampled value publishing. CE, FCC.
Hardware configuration
MP3000F: 6 x 30A, 4 X 125V, 0-265 V aux dc, 0-3 A high burden current output, 8 bin inputs, 4 Bin outputs. Suitable for IEC61850 GOOSE simulation, subscription and sampled value publishing.
MP3000FH: 6 x 30A, 4 X 300V, 0-265 V aux dc, 0-3 A high burden current output, 8 bin inputs, 4 Bin outputs. Suitable for IEC61850 GOOSE simulation, subscription and sampled value publishing.
Product Specifications
Current generators: 6 independent generators in two groups.
Each group is of 3 generators with common neutral.
Max current: 30 A ac- 20 A dc
Resolution: 0.03m A(0-0.3 A). 0.3m A (0.3-3.0 A). 1.0m A(3.0 -30A)
Accuracy: Error ≤ 0.1% of setting value. (I ≥ 0.2 A) error < 0.1% of setting value ± 200 µa. (I < 0.2 A)
Harmonic distortion: 0.2 A -30 A≤ 0.2%
Response time: ≤100µS
Power: 5A : 60 VA. 30 A : 300 VA max
Output time: Continuous (I ≤ 10 A). 100S (10 A < I≤20 A). > 20 S(20A<I ≤ 30A)
Voltage generators: 4 independent generators with common neutral.
4th voltage generator can be 3U0 or independent.
Max voltage AC: 125V L-N/ 250 V L-L (MP3000F). 300V L-N/600V L-L( MP3000FH)
Amplitude range of DC: ± 176 V(MP3000F) , ± 424 V ( MP3000FH)
Resolution: 4 mV(MP3000F),10 mV(MP3000FH)
Accuracy: Error ≤0.1% of setting from 10 V …125V(MP3000F).
Error ≤0.1% of setting from 24 V …300V( MP3000FH)
Harmonic distortion: ≤ 0.2%(10- 125 V..MP3000F) ≤ 0.2%(24- 300 V MP3000FH)
Response time: ≤100µS
Power: ≥ 40 VA (57V) . ≥100VA(100V- 300V)
Output time: Continuous
Frequency:
Range (sine wave): DC...1000Hz
Range (transient ): DC…3000Hz
Accuracy: 0.01%
Resolution: 0.001Hz
Phase angle:
Range: -360°…+360°
Accuracy: ≤0.2º
Resolution: 0.05º
Aux DC:
Range: 0-265 V Variable, Independently controlled
Power: 100 W max
High Burden Current Output:
Range: 0-3 AMP
Power: 100 VA
Max Voltage: 100 V
Max Binary Input: Can trigger by GPS
Numbers:8
Input sensing: Automatically detects the changeover of a dry or a wet contact
Sensing range: Wet contact( 24- 250V DC)
Resolution: 50 µS
Max. measuring time: Up to 99,999 S
Binary output:
Numbers:4
Type: Potential free
General specifications:
National standard: DL/T624-1997
AC Mains input voltage range: 110- 265 V
AC Mains voltage frequency: 45- 65 Hz
Operating temperature: -5 TO +50 ° C
Relative Humidity: 5-95% non condensing
Interface: Ethernet for PC connection, Optical for 61850
EMC: EN 61326-1 : 2006
EN 61000-3-2 : 2006
EN 61000-3-3: 1995 + A1: 2001+ A2:2005
FCC Part 15 Class A
LVD: EN 61010-1:2001
Max Power Consumption: 2000VA at 230 V; 1000VA at 115 V
Standard accessories: Test lead set and connectors with a canvas carry bag. Shoulder carry bag for MP3000. Transportation case.
Optional features: Contact us before order
Analog inputs:One dc current: 0-20 mA , Resolution 2 µA , Accuracy : 0.05%
One DC voltage: ± 10 V, Resolution :1 mV, Accuracy: 0.05%
Integrated GPS: For end to end test
MP3000
