MP3000 (Type:A1/A1H) :
Introduction:

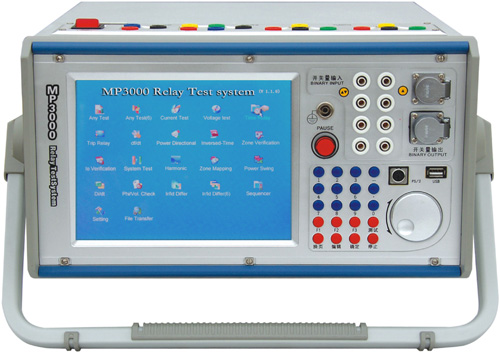

Advanced three phase automatic relay test set. Integrated PC and customized Windows CE.
8.4” Color LCD, Front panel control. Readymade test modules. PC control through user friendly
MPWIN Relay Test Software. High accuracy and high power over wide range.
Hardware configuration
MP3000A1: 6 x 30A, 4 X 125 V, 0-265 V aux dc, 0-3 A high burden current output, 8 bin Inputs,
4 bin outputs.
MP3000A1H: 6 x 30A, 4 X 300 V, 0-265 V aux dc, 0-3 A high burden current output, 8 bin Inputs,
4 bin outputs.
Product Specifications:
Current generators: 6 independent generators in two groups.
Each group is of 3 generators with common neutral.
Max current: 30 A ac- 20 A dc
Resolution: 0.03m A(0-0.3 A). 0.3m A(0.3-3.0 A). 1.0m A(3.0 -30A)
Accuracy: Error ≤ 0.1% of setting value.(I ≥ 0.2 A)
error < 0.1% of setting value ± 200 µa. (I < 0.2 A)
Harmonic distortion: 0.2 A -30 A≤ 0.2%
Response time: ≤100µS
Power: 5A : 60 VA. 30 A : 300 VA max
Output time: Continuous (I ≤ 10 A). 100S (10 A < I≤20 A).
> 20 S(20A<I ≤ 30A)
Voltage generators: 4 independent generators with common neutral.
4th voltage generator can be 3U0 or independent.
Max voltage AC: 125V L-N/ 250 V L-L (MP3000A1). 300V L-N/600V L-L (MP3000A1H)
Amplitude range of DC: ± 176 V(MP3000A1). ± 424 V(MP3000A1H)
Resolution: 4 mV(MP3000A1). 10 mV(MP3000A1H)
Accuracy: Error ≤0.1% of setting from 10 V …125V(MP3000A1).
Error ≤0.1% of setting from 24 V …300V(MP3000A1H)
Harmonic distortion: ≤ 0.2%(10- 125 V. MP3000A1)
≤ 0.2%(24- 300 V. MP3000A1H)
Response time: ≤100µS
Power: ≥ 40 VA (57V) . ≥100VA(100V- 300V)
Output time: Continuous
Frequency
Range (sine wave): DC...1000Hz
Range (transient ): DC…3000Hz
Accuracy: 0.01%
Resolution: 0.001Hz
Phase angle
Range: -360°…+360°
Accuracy: ≤0.2º
Resolution: 0.05º
Aux DC
Range: 0-265 V Variable, Independently controlled
Power: 100 W max
High Burden Current Output
Range: 0-3 AMP
Power: 100 VA Max
Voltage: 100 V Max
Binary Input: Can trigger by GPS
Numbers:8
Input sensing: Automatically detects the changeover of a dry or a wet contact
Sensing range: Wet contact( 24- 250V DC)
Resolution: 50 µS
Max. Measuring time: Up to 99,999 S
Binary output
Numbers:4
Type: Potential free
General specifications
National standard: DL/T624-1997
AC Mains input voltage range: 110- 265 V
AC Mains voltage frequency: 45- 65 Hz
Operating temperature: -5 TO +50 ° C
Relative Humidity: 5-95% non condensing
Interface: Ethernet/RS232 for PC connection
EMC: EN 61326-1 : 2006
EN 61000-3-2 : 2006
EN 61000-3-3: 1995 + A1: 2001+ A2:2005
FCC Part 15 Class A
LVD: EN 61010-1:2001
Max Power Consumption: 2000VA at 230 V; 1000VA at 115 V
Weight: 18 kg
Dimensions: 365x200x450mm
Standard accessories: Test lead set and connectors with a canvas carry bag. Shoulder
carry bag for MP3000. Transportation case.
Optional features: Contact us before order
Analog inputs
One dc current: 0-20 mA , Resolution 2 µA , Accuracy : 0.05%
One DC voltage: ± 10 V, Resolution :1 mV, Accuracy: 0.05%
Integrated GPS: For end to end test.
