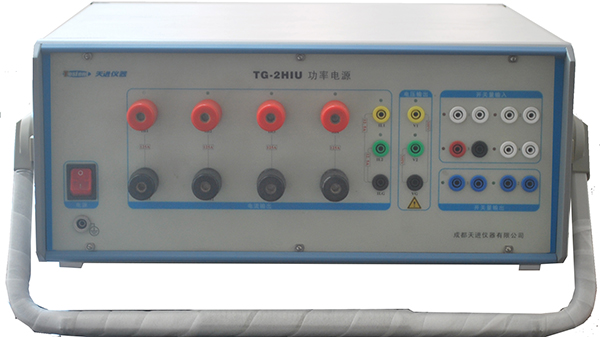

TG-2HIU
Consists of 2 high current modules, 1 medium current module, 1 voltage module
4×0~125A ac/dc + 2×0~12.5A ac/dc + 2×0~300V ac/dc
Specifications:
High current module
Range: 2×0~125Aac or 1×0~250Aac, 2×0~125Adc or 1×0~250Adc
Power 2×500VA/W or 1×1000VA/W
Accuracy: 0.5% of reading or 0.05% of range whichever is higher
Frequency: 0~200Hz
Output time: Depends on output current, 10 sec. to continuous
Medium current module
Range: 2×0~12.5Aac or 2x0~12.5Adc
Power 2×500VA/W, compliance voltage VLN 40V, VLL 80V
Accuracy: 0.5% of reading or 0.05% of range whichever is higher
Frequency: 0~200Hz
Output time: Continuous
Voltage module
Range: 2×0~300Vac or 0~420Vdc
Power 2×500VA/W
Accuracy: 0.5% of reading or 0.05% of range whichever is higher
Frequency: 0~200Hz
Output time: Continuous
A whole model is made of 4 above modules, 2 mains supply modules and one signal generating module. Run on external PC with manufacturer’s software through a communication
cable connected to the kit.
Dimensions: 520×465×210(W×D×H)
Weight: 18~22kg
Other models may also possible by requirement.
