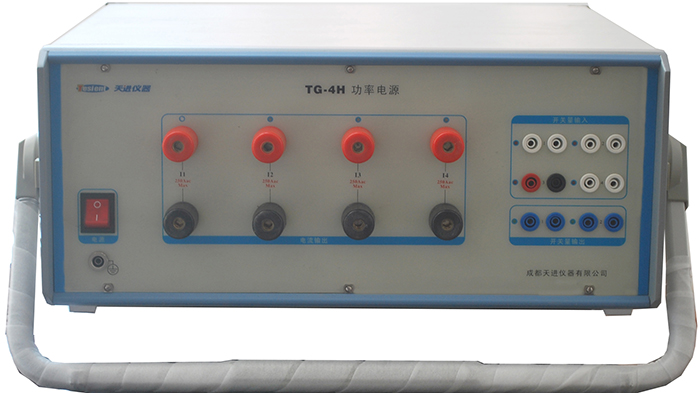

Consists of 4 high current modules
4×0~250A ac/dc, 4×0~1000VA/W
Specifications:
High current module
Range: 2×125Aac or 1×250Aac, 2×125Adc or 1×250Adc
Power 2×500VA/W or 1×1000VA/W
Accuracy: 0.5% of reading or 0.05% of range whichever is higher
Frequency: 0~200Hz
Output time: Depends on output current, 10 sec. to continuous
A whole model is made of 4 above modules, 2 mains supply modules and one signal generating module. Run on external PC with manufacturer’s software through a communication cable connected to the kit.
Dimensions: 520×465×210(W×D×H)
Weight: 18~22kg
Other models may also possible by requirement.
MP3000
