MP3000 (Type: B/BH) :
Introduction:

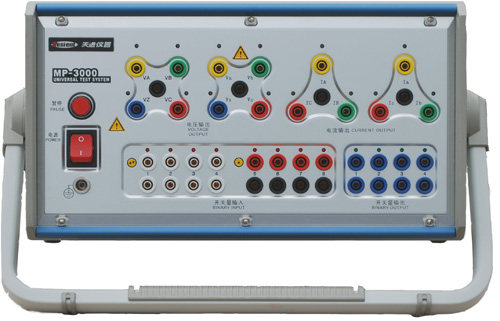

Advanced three phase automatic relay test set. PC control through user friendly MPWIN Relay Test Software. High accuracy and high power over wide range. Linear amplifier technology.
Hardware configuration
MP3000B: 6 x 30A, 8 X 125 V, 8 bin inputs, 4 bin outputs.
MP3000BH: 6 x 30A, 8 X 300 V, 8 bin inputs, 4 Bin outputs.
Product Specifications
Current generators: 6 independent generators in two groups.
Each group is of 3 generators with common neutral.
Max current: 30 A ac- 20 A dc
Resolution: 0.03m A(0-0.3 A). 0.3m A(0.3-3.0 A). 1.0m A(3.0 -30A)
Accuracy: Error ≤ 0.1% of setting value.(I ≥ 0.2 A)
error < 0.1% of setting value ± 200 µa. (I < 0.2 A)
Harmonic distortion: 0.2 A -30 A≤ 0.2%
Response time: ≤100µS
Power: 5A : 60 VA. 30 A : 300 VA max
Output time: Continuous (I ≤ 10 A). 100S (10 A < I≤20 A).
> 20 S (20A<I ≤ 30A)
Voltage generators: 8 : 4 independent generators with common neutral in one group.
4th voltage generator can be 3U0 or independent. Two such groups
Max voltage AC: 125V L-N/ 250 V L-L (MP3000B). 300V L-N/600V L-L (MP3000BH)
Amplitude range of DC: ± 176 V(MP3000B). ± 424 V(MP3000BH)
Resolution: 4 mV(MP3000B). 10 mV (MP3000BH)
Accuracy: Error ≤0.1% of setting from 10 V …125V(MP3000B).
Error ≤0.1% of setting from 24 V …300V (MP3000BH)
Harmonic distortion: ≤ 0.2%(10- 125 V. MP3000B)
≤ 0.2%(24- 300 V. MP3000BH)
Response time: ≤100µS
Power: ≥ 40 VA (57V) . ≥100VA(100V- 300V)
Output time: Continuous
Frequency
Range (sine wave): DC...1000Hz
Range (transient ): DC…3000Hz
Accuracy: 0.01%
Resolution: 0.001Hz
Phase angle
Range: -360°…+360°
Accuracy: ≤0.2º
Resolution: 0.05º
Binary Input: Can trigger by GPS
Numbers:8
Input sensing: Automatically detects the changeover of a dry or a wet contact
Sensing range: Wet contact( 24- 250V DC)
Resolution: 50 µS
Max. measuring time: Up to 99,999 S
Binary output
Numbers:4
Type: Potential free
General specifications
National standard: DL/T624-1997
AC Mains input voltage range: 110- 265 V
AC Mains voltage frequency: 45- 65 Hz
Operating temperature: -5 TO +50 ° C
Relative Humidity: 5-95% non condensing
Interface: Ethernet/RS232 for PC connection
EMC: EN 61326-1 : 2006
EN 61000-3-2 : 2006
EN 61000-3-3: 1995 + A1: 2001+ A2:2005
FCC Part 15 Class A
LVD: EN 61010-1:2001
Max Power Consumption: 2000VAat 230 V; 1000VA at 115 V
Weight: 18 kg
Dimensions: 365x200x450mm
Standard accessories: Test lead set and connectors with a canvas carry bag. Shoulder carry bag for MP3000. Transport case.
Optional features: Contact us before order
Analog inputs
One dc current: 0-20 mA , Resolution 2 µA , Accuracy : 0.05%
One DC voltage: ± 10 V, Resolution :1 mV, Accuracy: 0.05%
Integrated GPS: For end to end test
